Product Details
- Size: 112.5
- Place of Origin: China
- Brand Name: TianMing
- Model Number: TMTC-240
- Weight: 10800.000 kg

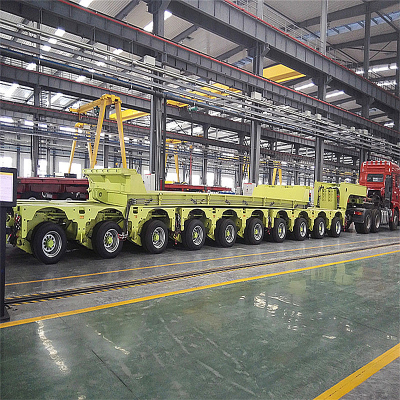

Heavy Duty Hydraulic Gooseneck Modular Semi Trailer
nOptional
l Tyre: Chaoyang,etc.
l Operation box： Imported or Local production
- Size: 112.5
- Place of Origin: China
- Brand Name: TianMing
- Model Number: TMTC-240
- Weight: 10800.000 kg
Heavy Duty Hydraulic Gooseneck Modular Semi Trailer
| Specification | |
| Main beam Material | Rated Capacity：240T |
| Steel AH60 | Main Parts： |
| Suspension system | Combinable heavy module 10 line-axles |
| Stroke hydraulic±230mm | Basic module width: |
| 3-point-supported | 3600±10 mm |
| Braking system | Total Dimension: |
| Twin-line airbrake | 21280mm*3600mm*1080 230mm |
| Gooseneck device | Angle of rotation axis：±45° |
| Gooseneck rated capacity：40T | Tyre QTY each axle: 8 |
| Gooseneck traction panel | Tyre Brand：Chaoyang |
| The four valve operation | Tyre Model：8.25R15 |
| Nominal pressure:31.5MPa； | Wheelbase：1600mm |
| Nominal flow rate:40L/min； | Wheel-track：906/3030mm |
| Starting pressure of brake device: 5bar | |
| Diesel Power Plant | Hydraulic system working pressure：250bar |
| Engine model：TY295D | Working voltage：24V |
| Engine brand：Jianghuai | Rear traction panel |
| Rated output power：12kw | The four valve operation |
| Rated speed：1500rpm/min | Nominal pressure:31.5MPa； |
| Nominal flow rate:40L/min； | |
